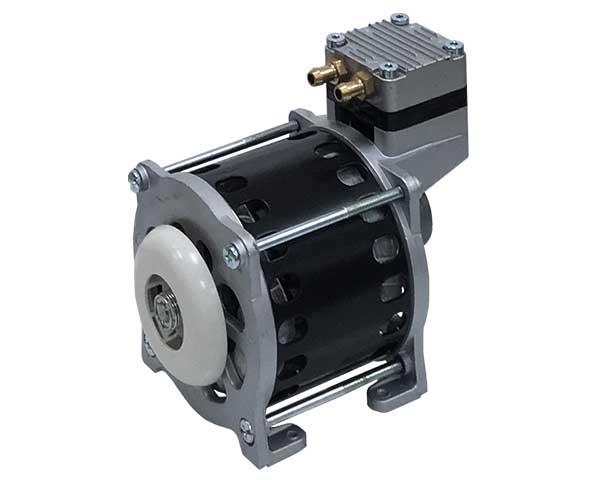

Category: Oil Less Vacuum Pump
Brand: UNi-CROWN
Brushless motor
DCBL 12V~24V
Can be controlled RPM by PWM
Max. Pressure 0.79
Open Flow 12V 300mL/min，24V 500mL/min
Lifetime 10,000hr
Features:
Can realize PWM speed regulation, small size and light weight, oil-free operation, low maintenance requirements, self-priming function, brushless motor life of 10,000 hours
Applications:
Medical applications, cleaning machines, industrial printers, filtration applications, laboratories, analytical instruments
Certification: ISO, ROHS2, FDA
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 額定電壓 Rated Voltage | V | BLDC 12 ~ 24 |
| 最大揚程 Max. Head | M | >10 |
| 最大流量 Max. Flow | mL/min | 300/12V 500/24V |
| 安培值 Max Current | A | 0.3 |
| 外型尺寸 Dimension | mm | 35.5 x 23 x 40 |
| 馬達壽命 Reference lifetime | hours | 10000 |
