019-777 7771

Air Motor 1AM-1UP-2AM-4AM

Category:

Brand:

Send Inquiry

Designed for versatility, durability, and reliability, our models 1AM, 1UP, 2AM, and 4AM are ideal, cost-effective solutions for applications in hazardous and extreme temperature locations requiring durable and efficient power sources. Engineered to operate at cool temperatures and provide precise control, these models convert compressed air into mechanical energy to power various tools and equipment efficiently and reliably.

Brochure

Designed for versatility, durability, and reliability, our models 1AM, 1UP, 2AM, and 4AM are ideal, cost-effective solutions for applications in hazardous and extreme temperature locations requiring durable and efficient power sources. Engineered to operate at cool temperatures and provide precise control, these models convert compressed air into mechanical energy to power various tools and equipment efficiently and reliably.

As our smaller, more compact air motor models, the 1AM, 1UP, 2AM, and 4AM are extremely versatile offering reliable performance with variable speeds, cool running capabilities, lubricated or oil-free options, and low-shock instant start, stop, and reverse and gear-reduced options. Their non-electrical design reduces explosion risks feature and they have self-sealing vanes for long-lasting output.

The 1AM, 1UP, 2AM, and 4AM are the perfect solution for applications across various industries such as powering surgical tools in healthcare, driving mixers in food and beverage processing, enhancing automation in general industries, and automating assembly lines in automotive manufacturing.

Find your perfect fit below.

Highlights

  • Mounting Options: Can operate in any position, allowing for mounting flexibility and easy integration
  • Customization: OEM applications can customize materials, shafts, paint colors, mounting configurations, and gearing
  • Low-shock, Instant Operation: RV models can instantly start, stop, and reverse, eliminating delays associated with electric motor speed changes and reducing stress on equipment
  • Capabilities: Up to 1.7 HP, Maximum Torque to 5.6 to 1650 in. lbs., and 350 to 10,000 rpm maximum speed
1AM-NCC-12 Air Motors (Small) HUB Round 4 CCW Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.25 L
2.44 W
2.43 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-39A Air Motors (Small) HUB Round 4 REV Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.25 L
2.44 W
2.43 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-56 Air Motors (Small) HUB Splined 4 REV Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.06 L
2.44 W
2.43 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-56-GR11 Gear Motor (Small) FACE Flat 4 REV Y 0.42 0.31 100 72 350 63 22 15:1 3.1 78 6.87 L
2.93 W
2.93 H		 N/A
N/A
2 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NCC-59B Air Motors (Small) HUB Flat 4 CCW Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.23 L
2.44 W
2.43 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-60 Air Motors (Small) HUB Splined 4 REV Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.06 L
2.44 W
2..43 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-60-GR11 Gear Motor (Small) FACE Flat 8 REV Y 0.42 0.31 100 72 350 2.7 22 15:1 2 78 4.06 L
2.44 W
2.43 H		 NA L
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-63A Air Motors (Small) HUB Round 8 REV Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.25 L
2.44 W
2.43 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1AM-NRV-82 Air Motors (Small) HUB Flat 4 REV Y 0.42 0.31 100 5.6 10000 2.7 22 N/A 2 78 4.23 L
2.44 W
2.43 H		 N/A
N/A
1.25 D		 CE, ATEX USA — AIR MOTOR View
1UP-NCC-1A Air Motors (Small) HUB Flat 4 CCW Y 0.42 0.31 80 6 6000 4.9 27 N/A 3 78 4.69 L
2.44 W
2.22 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1UP-NCC-20 Air Motors (Small) HUB Round 8 CCW Y 0.42 0.31 80 6 6000 4.9 27 N/A 3 78 4.69 L
2.44 W
2.22 H		 N/A
N/A
1.28 D		 N/A USA — AIR MOTOR View
1UP-NRV-10 Air Motors (Small) HUB Flat 8 REV Y 0.42 0.31 80 6 6000 4.9 27 N/A 3 78 4.69 L
2.44 W
2.22 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1UP-NRV-11 Air Motors (Small) HUB Splined 8 REV Y 0.42 0.31 80 6 6000 4.9 27 N/A 3 78 4.51 L
2.44 W
2.22 H		 N/A
N/A
1.25 D		 CE, ATEX USA — AIR MOTOR View
1UP-NRV-11-GR11 Gear Motor (Small) FACE Flat 8 REV Y 0.42 0.31 80 95 400 88 22 15:1 3.1 78 7.3 L
2.93 W
2.93 H		 N/A
N/A
2 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1UP-NRV-3A Air Motors (Small) HUB Flat 4 REV Y 0.42 0.31 80 6 6000 4.9 27 N/A 3 78 4.69 L
2.44 W
2.22 H		 N/A
N/A
1.25 D		 CE, UKCA, ATEX USA — AIR MOTOR View
1UP-NRV-4 Air Motors (Small) HUB Splined 4 REV Y 0.42 0.31 80 6 6000 4.9 27 N/A 3 78 4.69 L
2.44 W
2.22 H		 N/A
N/A
1.25 D		 CE, ATEX USA — AIR MOTOR View
1UP-NRV-4-GR11 Gear Motor (Small) FACE Flat 4 REV Y 0.42 0.31 80 95 400 4.9 27 15:1 3.1 78 7.3 L
2.93 W
2.93 H		 N/A
N/A
2 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-ARV-92 Air Motors (Small) D71 METRIC FLANGE Keyed 4 REV Y 0.95 0.71 100 25 3000 17 40 N/A 7.5 76 5 L
6.3 W
6.3 H		 N/A
N/A
5.12 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-ARV-93 Air Motors (Small) D71C METRIC FACE Keyed 4 REV Y 0.95 0.71 100 25 3000 17 40 N/A 6.6 76 5 L
4.13 W
4.13 H		 N/A
N/A
3.35 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-FCC-1 Air Motors (Small) FOOT Flat 4 CCW Y 0.95 0.71 100 26 3000 19 30 N/A 4.4 76 4.95 L
4.12 W
5.27 H		 N/A
N/A
N/A		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-FCW-13 Air Motors (Small) FOOT Flat 4 CW Y 0.95 0.71 100 26 3000 19 30 N/A 4.4 76 4.95 L
4.12 W
5.27 H		 N/A
N/A
N/A		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-NCC-16 Air Motors (Small) HUB Flat 4 CCW Y 0.95 0.71 100 26 3000 19 30 N/A 4.2 76 4.95 L
3.97 W
3.97 H		 N/A
N/A
1.75 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-NCC-43A Air Motors (Small) NEMA 56C FLANGE Keyed 4 CCW Y 0.95 0.71 100 26 3000 19 30 N/A 7.5 76 5.87 L
6.5 W
6.5 H		 N/A
N/A
5.88 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-NCW-7A Air Motors (Small) HUB Flat 4 CW Y 0.95 0.71 100 26 3000 19 30 N/A 4.2 76 4.95 L
3.97 W
3.97 H		 N/A
N/A
1.75 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-NCW-7B Air Motors (Small) HUB Flat 4 CW Y 0.95 0.71 100 26 3000 19 30 N/A 4.2 76 4.95 L
3.97 W
3.97 H		 N/A
N/A
1.75 D		 CE, ATEX USA — AIR MOTOR View
2AM-NRV-89 Air Motors (Small) HUB Flat 4 REV Y 0.95 0.71 100 26 3000 19 30 N/A 4.2 76 4.95 L
3.97 W
3.97 H		 N/A
N/A
1.75 D		 CE, UKCA, ATEX USA — AIR MOTOR View
2AM-NRV-90 Air Motors (Small) NEMA 56C FLANGE Keyed 4 REV Y 0.95 0.71 100 26 3000 19 30 N/A 4.2 76 5.87 L
6.5 W
6.5 H		 N/A
N/A
5.88 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-ARV-119 Air Motors (Small) D71 METRIC FLANGE Keyed 4 REV Y 1.7 1.27 100 56 3000 35 72 N/A 11 87 5.88 L
6.3 W
6.3 H		 N/A
N/A
5.12 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-ARV-119LL Air Motors (Small) D71 METRIC FLANGE Keyed 4 REV N 1.05 0.78 100 56 2000 35 72 N/A 11 87 5.88 L
6.3 W
6.3 H		 N/A
N/A
5.12 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-ARV-120 Air Motors (Small) D71 METRIC FLANGE Keyed 8 REV Y 1.7 1.27 100 56 3000 35 72 N/A 11 87 5.88 L
6.3 W
6.3 H		 N/A
N/A
5.12 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-FRV-13C Air Motors (Small) FOOT Keyed 4 REV Y 1.7 1.27 100 56 3000 35 72 N/A 7.5 87 5.81 L
3.75 W
5.33 H		 N/A
N/A
N/A		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-FRV-63A Air Motors (Small) FOOT Keyed 8 REV Y 1.7 1.27 100 56 3000 35 72 N/A 7.5 87 5.81 L
3.75 W
5.33 H		 N/A
N/A
N/A		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-NRV-143 Air Motors (Small) HUB/FACE Keyed 8 REV Y 1.7 1.27 100 56 3000 35 72 N/A 7 87 5.81 L
4.06 W
4.06 H		 1.25 L
1.21 W
1.75 D		 UKCA,ATEX USA — AIR MOTOR View
4AM-NRV-22B Air Motors (Small) FACE Keyed 4 REV Y 1.7 1.27 100 56 3000 35 72 N/A 7 87 5.81 L
4.06 W
4.06 H		 1.25 L
1.21 W
1.75 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-NRV-50C Air Motors (Small) NEMA 56C FLANGE Keyed 4 REV Y 1.7 1.27 100 56 3000 35 72 N/A 11 87 6.69 L
6.5 W
6.5 H		 N/A
N/A
5.88 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-NRV-54A Air Motors (Small) FACE Keyed 8 REV Y 1.7 1.27 100 56 3000 35 72 N/A 7 87 5.81 L
4.06 W
4.06 H		 1.25 L
1.21 W
1.75 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-NRV-70C Air Motors (Small) NEMA 56C FLANGE Keyed 8 REV Y 1.7 1.27 100 56 3000 35 72 N/A 11 87 6.69 L
6.5 W
6.5 H		 N/A
N/A
5.88 D		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-RV-75 Air Motors (Small) FLANGE Splined 4 REV Y 1.7 1.27 100 56 3000 35 72 N/A 11 87 5.81 L
6 W
6 H		 N/A
N/A
5.88 D		 CE, UKCA USA — AIR MOTOR View
4AM-RV-75-GR20 Gear Motor (Small) FACE Keyed 4 REV Y 1.3 0.97 80 425 300 260 58 10:1 28 87 11.62 L
6.1 W
6.6 H		 N/A
N/A
N/A		 CE, UKCA, ATEX USA — AIR MOTOR View
4AM-RV-75-GR25 Gear Motor (Small) FACE Keyed 4 REV Y 1.3 0.97 80 650 200 400 60 15:1 28 87 11.62 L
6.1 W
6.6 H		 N/A
N/A
N/A		 CE, UKCA, ATEX USA — AIR MOTOR View

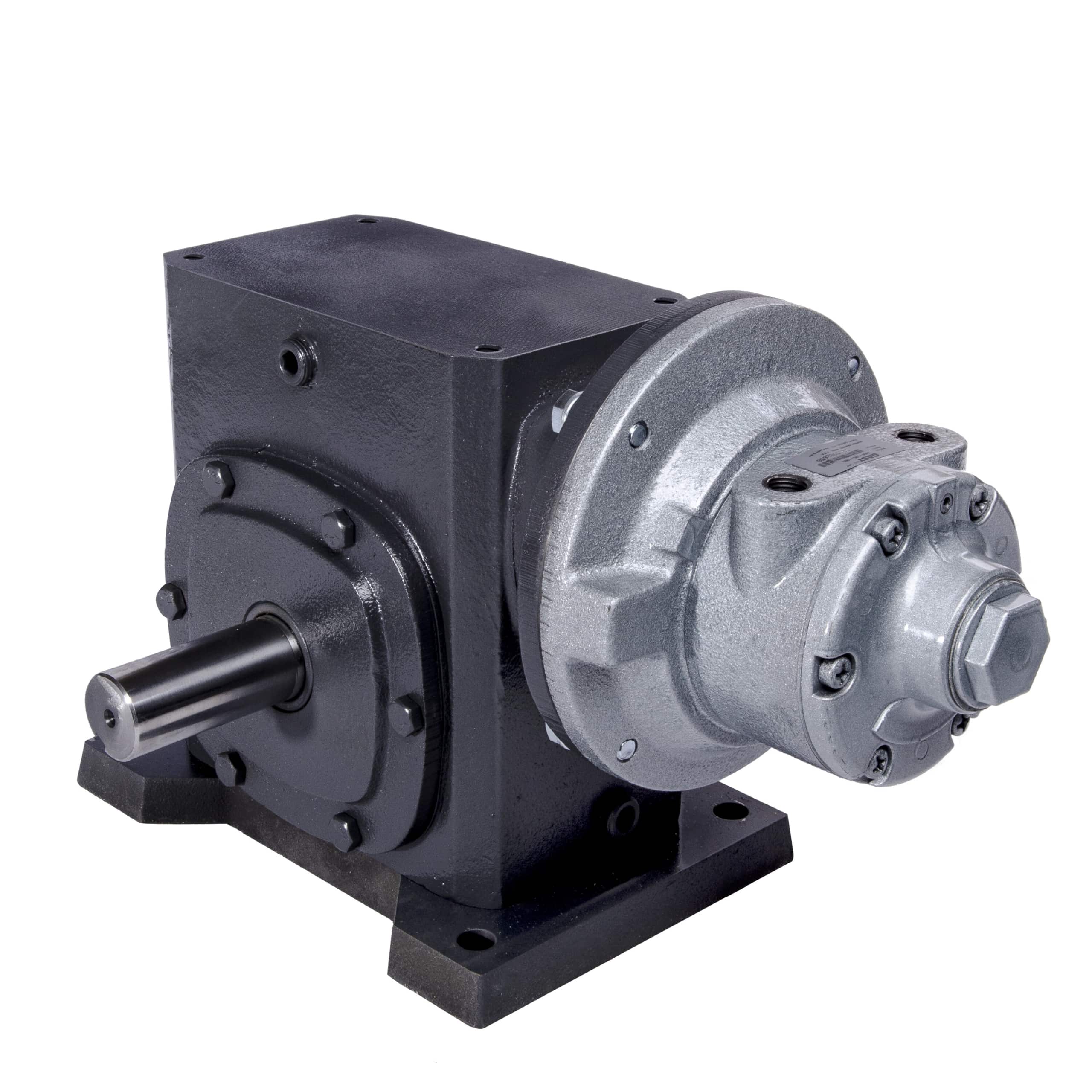

4AM-70C-CB20 Gear Motor (Small) Shaft Keyed 4 REV Y 1.2 0.89 100 720 150 480 72 20:1 60 113 14.22 L
8.88 W
9.5 H		 N/A
N/A
N/A		 N/A USA — AIR MOTOR View
4AM-70C-CB60 Gear Motor (Small) Shaft Keyed 4 REV Y 0.85 0.63 100 1650 50 1050 72 60:1 60 87 14.95 L
8.88 W
9.5 H		 N/A
N/A
N/A		 N/A USA — AIR MOTOR View
